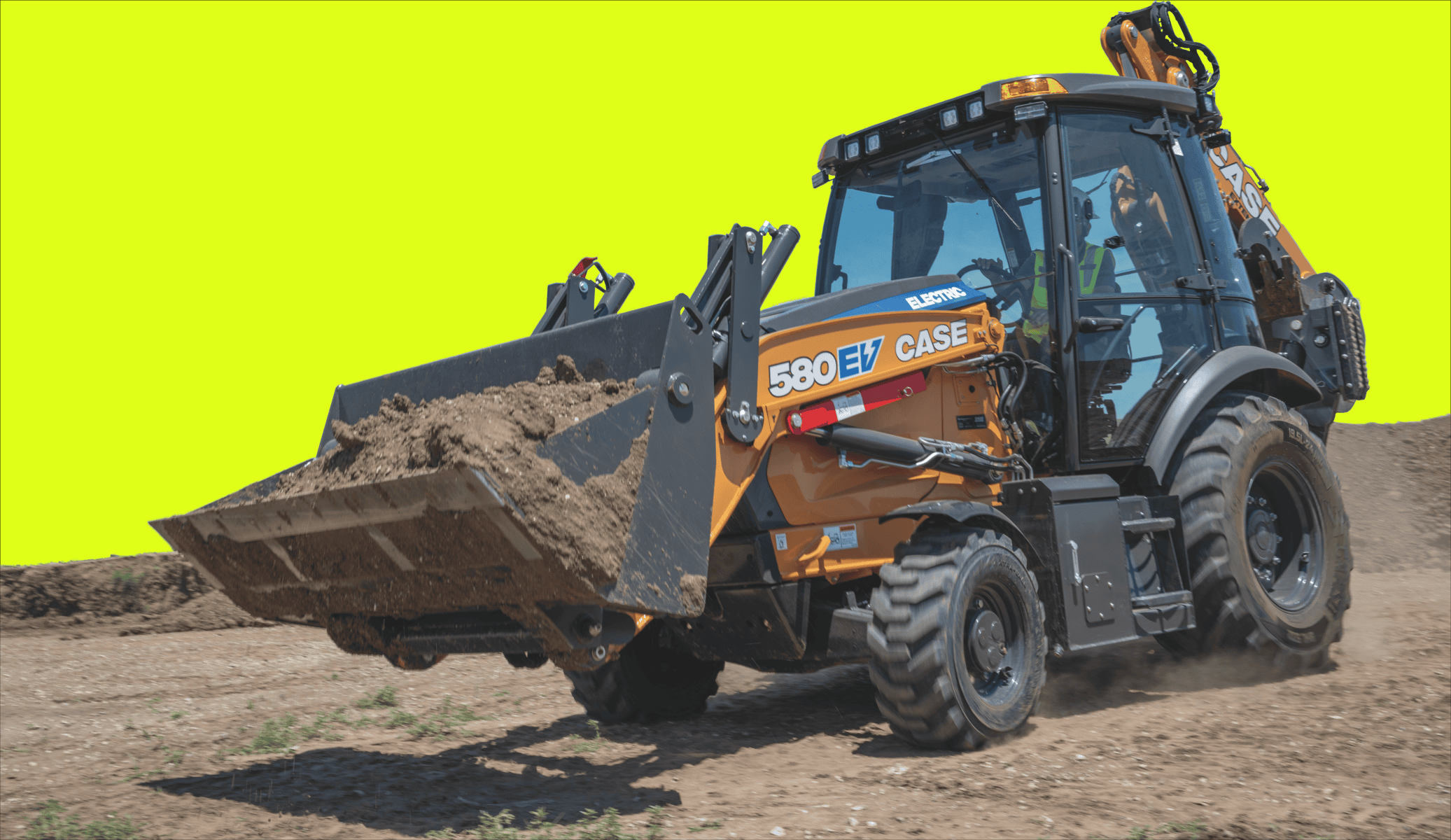

CASE 580EV
Meet the world's first electric backhoe loader.
Built in response to customer demand, it's ideal for urban jobsites, municipalities, and utility work where clean, quiet operation matters most. The 580EV delivers diesel-like power, performance, loader lift, and backhoe force—without emissions or noise.
Zero Emissions
Clean & quiet operation
71 kWh Battery
400V lithium-ion
108 HP Output
Diesel-equivalent power
3-Year Warranty
EV system protection
The Future of Backhoe Loaders Is Here
The CASE 580EV is the world's first fully electric backhoe loader, delivering the same power, performance, and versatility as its diesel counterpart—with zero emissions, reduced noise, and dramatically lower maintenance costs. Purpose-built for municipalities, utilities, and urban jobsites where clean, quiet operation is essential.
- Zero emissions and near-silent operation
- Diesel-equivalent digging and lifting performance
- 4–8 hours of operational run time per charge
- Compatible with all CASE N Series attachments
- Dramatically reduced maintenance costs
- 3-year / 3,000-hour EV warranty included
- EV Care maintenance package included
Explore the 580EV Features
Electric Power & Specifications
The Powerhouse
- 400-volt, 71-kWh lithium-ion battery
- Two independent electric motors
- Performance matching the CASE 580SN
- Rated output: 108 HP / 80 kW
All Charged Up
- Level 2 J1772 charging standard
- 0-100% charge in approximately 7.5 hours
- 4–8 hours of operational run time
- Charge at public stations or in-shop
Purpose-Built Innovation
- PowerDrive PowerShift transmission
- Compatible with all CASE N Series attachments
- Only uses energy when performing work
- Zero idle fuel waste
Specifications
General
| Backhoe Type | Center Pivot |
| Rated Output | 108 HP / 80 kW |
| Transmission | Power Shift |
| Travel Speeds | 4F – 4R |
Dimensions
| Extending Stick | Yes |
| Max Dig Depth | 17 ft 11 in / 5,470 mm |
| Dump Height | 8 ft 10 in / 2,690 mm |
Capacities
| Bucket Capacity | 1 yd³ / 0.79 m³ |
| Bucket Breakout | 10,947 lb / 49.65 kN |
| Operating Weight | 19,947 lbs / 9,048 kg |
Built for the Operator
Comfort Zone
- Heat and air conditioning
- Deluxe heated seat
- Keyless start
- Selectable work modes
- Ergonomic controls
Beacon of Ingenuity
- 8-inch full-color touchscreen
- Multicolored 4-corner LED strobes
- Selectable colors and patterns
- Rear-view camera integration
- LED work lights
Future-Proofed Performance
- Advanced telematics system
- Remote diagnostics
- EV CARE maintenance package
- EV warranty coverage
- Two-way communication
$290,000 Incentive

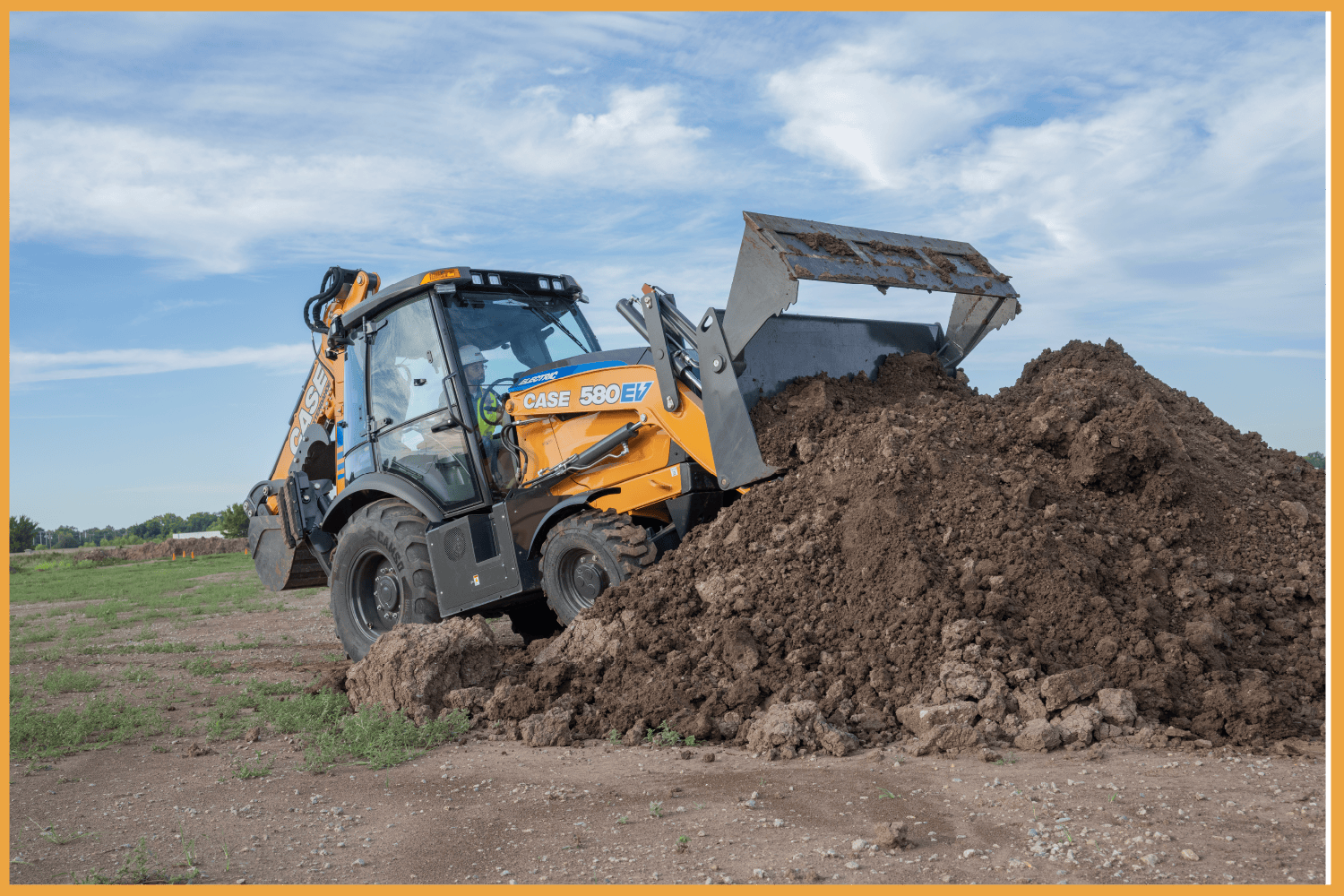

California residents may qualify for up to $290,000 through the California CORE (Clean Off-Road Equipment) incentive program when purchasing a CASE 580EV Electric Backhoe. This significant incentive makes the transition to zero-emission equipment more accessible than ever.
